Vector® Plasma Screened
Vector® Plasma Screened
SKU:45091613

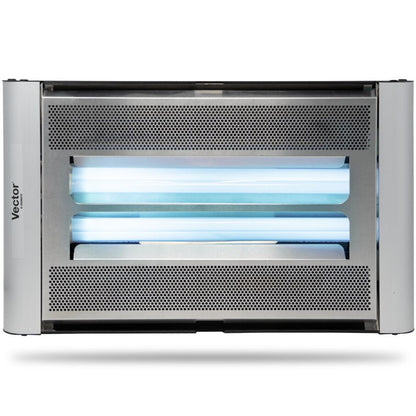

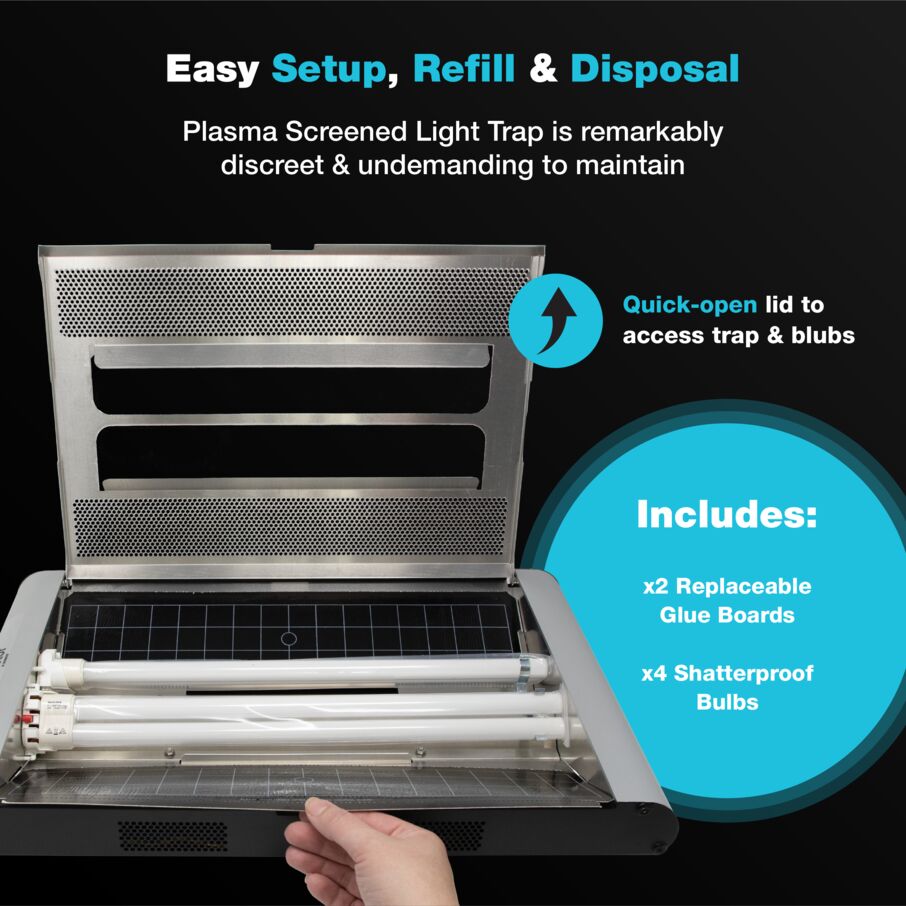

Achieve rapid fly control in production and storage areas of large commercial facilities and back-of-house areas of restaurants and commercial kitchens with this fast-acting unit. The Vector® Plasma is quick, sleek, lightweight and delivers 72 watts of insect attraction. The lift & service cover makes service and maintenance a snap. Screened cover for hidden glueboards.
• Fastest catch in Vector® family
• Dual glueboards provide maximum catch area
• Shatter-proof bulbs
• Ideal for use in food processing, commercial kitchens, restaurants,
• warehouses and schools
• Electronic ballast for maximum efficiency and quality
• 3-year warranty
| Item # | Weight | Size | Warranty |

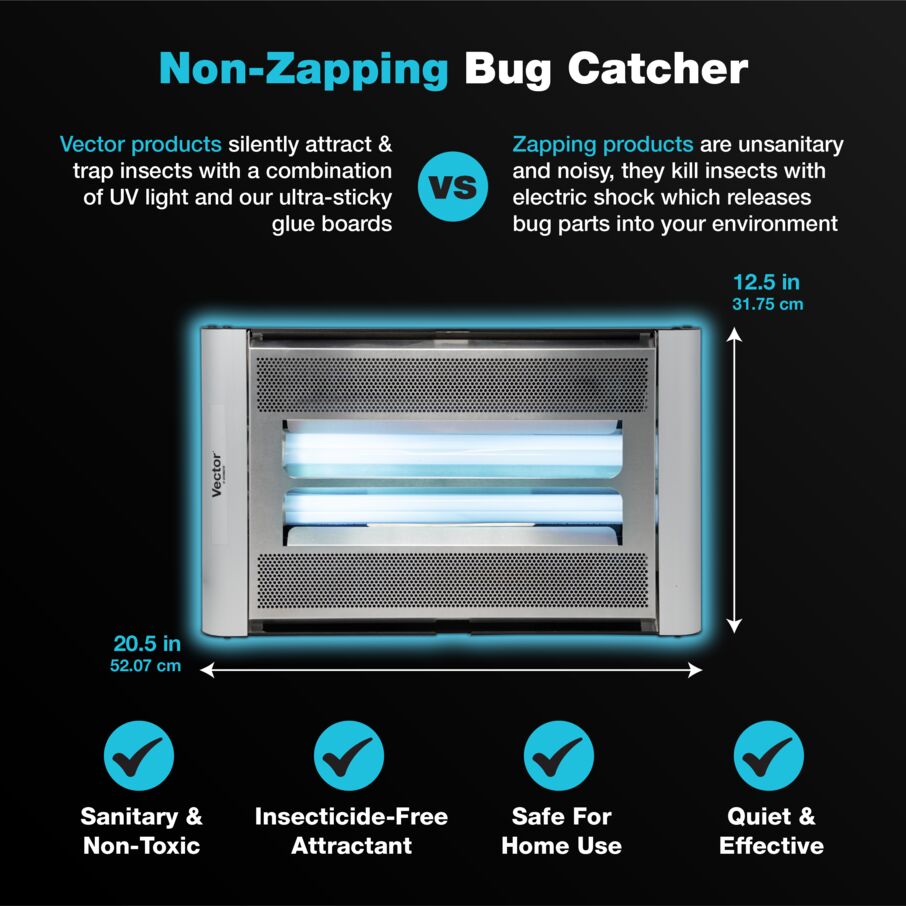

| 45091613 | 6 lbs | 21 x 2.5 x 12.5″ | 3 years |
Product Dimensions
| Product | Length | Width | Height | Weight |
| Universal Glueboard with pheromone | 16.5″ | 4″ | — | 0.89 oz |
| Universal Glueboard without pheromone | 16.5″ | 4″ | — | 0.89 oz |
| 15-watt standard bulb | 17″ | 1″ | 1″ | 2.3 oz |
| 15-watt standard bulb (shatterproof bulb) | 17″ | 1″ | 1″ | 2.3 oz |
| 36-watt standard bulb | 16″ | 1.5″ | 0.9″ | 4.0 oz |
| 36-watt standard bulb (shatterproof bulb) | 16″ | 1.5″ | 0.9″ | 4.0 oz |
Electrical Specifications
| Product | Bulbs | Input Voltage | Amps | Watts | Frequency | Warranty | Safety Rating | UL File # |
| Vector® Classic | 2x15w | 110-120w | .55 | 30 | 60Hz | 3 yr | UL 153, UL 1559, CSA C22.2 (CUL) | E123180 |
| Vector® Plasma | 2x36w | 110-120w | .65 | 72 | 60Hz | 3 yr | UL 153, UL 1559, CSA C22.2 (CUL) | E181000 |
| Vector® Plasma One | 1x36X | 110-120w | .32 | 36 | 60Hz | 3 yr | UL 153, UL 1559, CSA C22.2 (CUL) | E181000 |
